SELECTOR LEVER STRUCTURE


id051800100400


M Range Switch


Outline

•  The M range switch detects the selector lever in M range position and sends a manual mode request signal to the PCM.

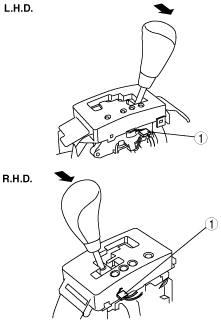

am3zzn00000520

1
M range switch


Operation

•  The M range switch is an on/off type switch that turns on when the selector lever is shifted to the M range. It also remains on during up-shift and down-shift operations.


Up Switch


Outline

•  The up switch detects an up-shift operation in the M range and sends an up-shift request signal to the PCM.

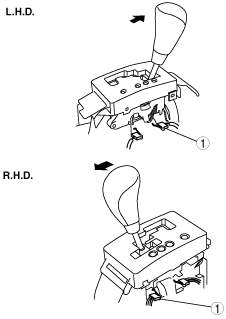

am3zzn00000521

1
Up switch


Operation

•  The up switch is an on/off type switch that turns on when the selector lever is in the M range (+) side position.


Down Switch


Outline

•  The down switch detects a down-shift operation in the M range and sends a down-shift request signal to the PCM.
am3zzn00000522

1
Down switch


Operation

•  The down switch is an on/off type switch that turns on when the selector lever is in the M range (–) side position.


P Range Switch


Outline

•  The P position switch detects whether or not the selector lever is in P position. When detected, sends a P position signal to the shift-lock relay and, when detected, sends a "Not P position" signal to the key interlock solenoid.

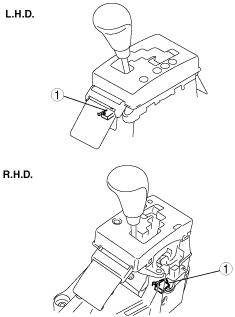

am3zzn00000523

1
P range switch


Operation

•  The P position switch is an on/off type switch whose P position side turns on when the selector lever is in the P position and the "Not P position" side turns on when the selector lever is any position besides the P position.
