KEY INTERLOCK SYSTEM OPERATION
id051800100600
Normal Key Type
Position other than Park (key interlock operates)
-

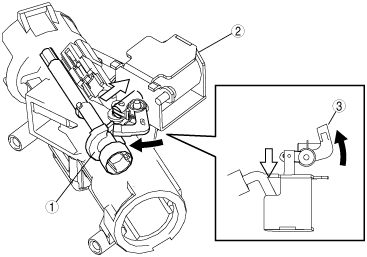

• The key interlock solenoid is energized when the selector lever is any position other than the P position. When the key interlock solenoid is energized, it pulls the solenoid slider, moving the stopper in the steering lock to contact the cam. Due to this, the key cannot be turned to the LOCK position.
|
1
|
Cam
|
|
2
|
Key interlock solenoid
|
|
3
|
Stopper
|
Park position (key interlock does not operate)
-
• The key interlock solenoid is not energized when the selector lever is in the P position. The key interlock solenoid slider is pushed by the return spring, releasing the stopper in the steering lock from the cam. Due to this, the key can be turned to the LOCK position.
|
1
|
Cam
|
|
2
|
Key interlock solenoid
|
|
3
|
Stopper
|
Advanced Keyless Type
Position other than Park (key interlock operates)
-

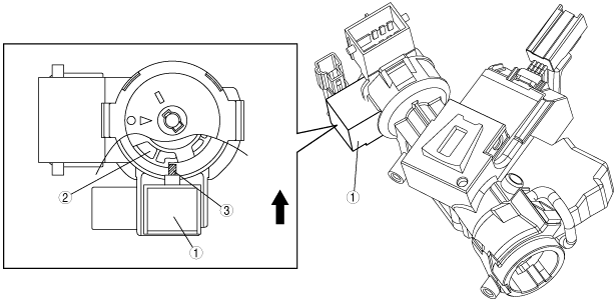

• The key interlock solenoid is energized when the selector lever is any position other than the P position. When the key interlock solenoid is energized, it comes out the stopper in the key interlock solenoid to contact the notch of the rotor of the ignition switch. Due to this, the key cannot be turned to the LOCK position.
|
1
|
Cam
|
|
2
|
Key interlock solenoid
|
|
3
|
Stopper
|
Park position (key interlock does not operate)
-
• The key interlock solenoid is not energized when the selector lever is in the P position. The stopper in the key interlock solenoid is pulled by the return spring releasing the stopper from the rotor. Due to this, the key can be turned to the LOCK position.
|
1
|
Cam
|
|
2
|
Key interlock solenoid
|
|
3
|
Stopper
|
