KEY INTERLOCK SYSTEM STRUCTURE

id051800100900

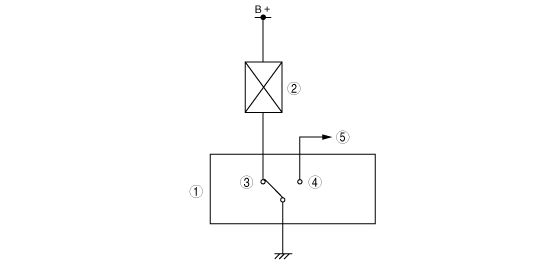

Normal Key Type

•  The key interlock system consists of the P position switch (built-in selector lever component), key interlock solenoid, and steering lock.
am3zzn00000530

1
P position switch
2
Key interlock solenoid
3
Except P position
4
P position
5
To PJB (shift-lock relay)

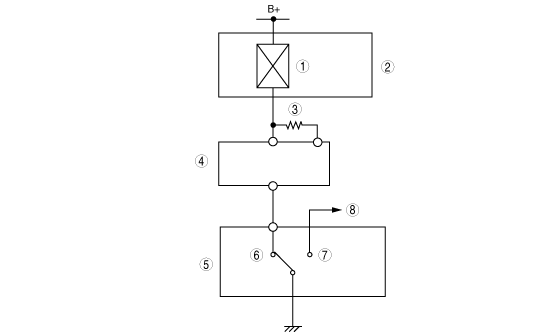

Advanced Keyless Type

•  The key interlock system consists of the Not P position switch (built-in selector lever component), key interlock solenoid, (built-in ignition switch), and ignition switch.
am3zzn00001412

1
Key interlock solenoid
2
Ignition switch
3
Key interlock resistor
4
Keyless control module
5
P position switch
6
Except P position
7
P position
8
To PJB (shift-lock relay)
