STEERING GEAR AND LINKAGE CONSTRUCTION


id061400100600

•  A size and weight reduced rack and pinion system steering gear has been adopted.
•  Heightened support rigidity has been achieved due to the integration of the steering gear mounts (two locations) and gear housing, improving response and steering stability.

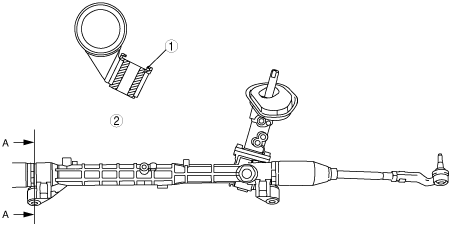

b3e0612t002

1
Mount rubber
2
Cross-section A-A
