ELECTRIC POWER STEERING OIL PUMP CONSTRUCTION[ZY, LF, L3, MZ-CD 1.6 (Y6)]

id0614001013c2

•  Electric power steering oil pump has been adopted for vehicles with the ZY, LF, L3, MZ-CD1.6 (Y6) engine to reduce engine load. This allows for an improvement in fuel economy while conserving the performance and feeling of conventional hydraulic power steering.
•  Size and weight reduction is achieved due to the integration of the electric power steering oil pump, motor, reserve tank, and EHPAS control module.

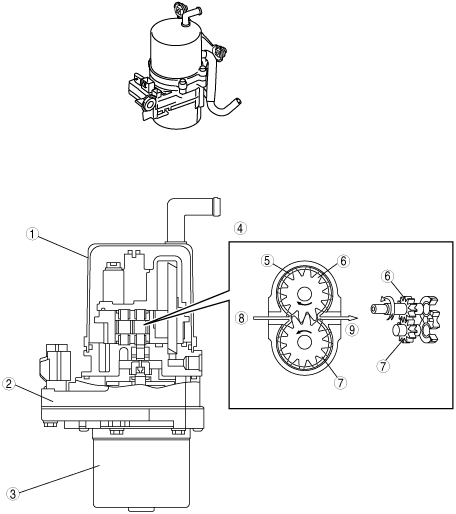

am3zzn00000687

1
Reserve tank
2
EHPAS control module
3
Motor
4
Gear pump
5
Hydraulic chamber
6
Drive pinion
7
Driven pinion
8
Intake
9
Outlet
