ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) WIRING DIAGRAM
id061400101700

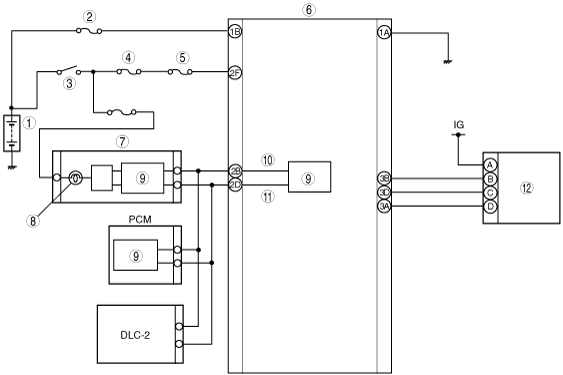

Without DSC
am3zzn00000682
|
|
1
|
Battery
|
|
2
|
P/ST 80 A fuse
|
|
3
|
Ignition switch
|
|
4
|
IGNITION 20 A fuse
|
|
5
|
P/ST IG 10 A fuse
|
|
6
|
EHPAS control module
|
|
7
|
Instrument cluster
|
|
8
|
EHPAS warning light
|
|
9
|
CAN driver
|
|
10
|
CAN_L
|
|
11
|
CAN_H
|
|
12
|
Steering angle sensor
|

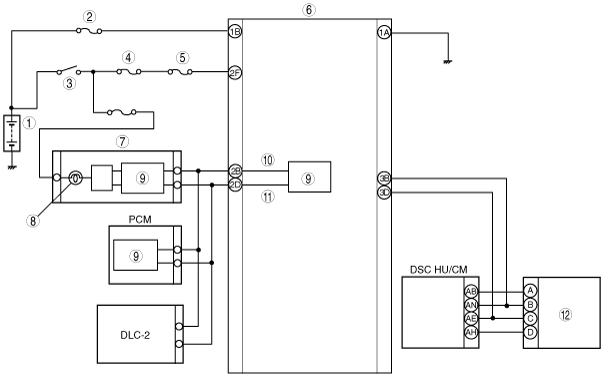

With DSC
am3zzn00000957
|
|
1
|
Battery
|
|
2
|
P/ST 80 A fuse
|
|
3
|
Ignition switch
|
|
4
|
IGNITION 20 A fuse
|
|
5
|
P/ST IG 10 A fuse
|
|
6
|
EHPAS control module
|
|
7
|
Instrument cluster
|
|
8
|
EHPAS warning light
|
|
9
|
CAN driver
|
|
10
|
CAN_L
|
|
11
|
CAN_H
|
|
12
|
Steering angle sensor
|
