POWER STEERING OIL PUMP REMOVAL/INSTALLATION[L3 Turbo]

id0614008007c3

1.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION[L3 Turbo].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

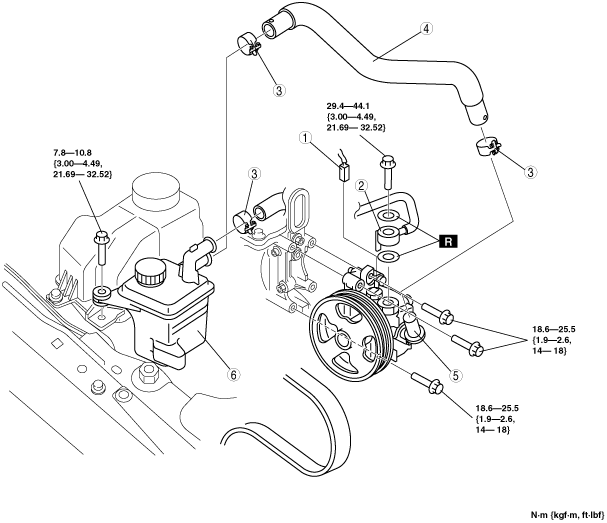

am3uuw00000120

1	Pressure switch connector
2	Pressure pipe
3	Hose band
4	Suction hose
5	Power steering oil pump
6	Power steering reserve tank
