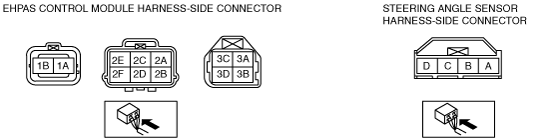

am3zzw00001711
ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE INSPECTION[ZY, LF, L3, MZ-CD 1.6 (Y6)]
id0614008025c2
Terminal Voltage Table (Reference)
am3zzw00001711
|
|
Terminal |
Signal name |
Connected to |
Measured item |
Measured terminal (measured condition) |
Standard |
Inspection item(s) |
|---|---|---|---|---|---|---|
|
1A
|
Ground
|
Ground point
|
Voltage
|
Under any condition
|
1 V or less
|
• Wiring harness (1A—ground point)
|
|
1B
|
Battery power supply
|
Battery
|
Voltage
|
Under any condition
|
B+
|
• Wiring harness (1B—battery)
• Fuse (P/ST 80 A)
|
|
2A
|
—
|
—
|
—
|
—
|
—
|
—
|
|
2B
|
CAN_L
|
—
|
Inspect under DTC inspection.
|
—
|
||
|
2C
|
—
|
—
|
—
|
—
|
—
|
—
|
|
2D
|
CAN_H
|
—
|
Inspect under DTC inspection.
|
—
|
||
|
2E
|
—
|
—
|
—
|
—
|
—
|
—
|
|
2F
|
Ignition power supply
|
Ignition switch
|
Voltage
|
Ignition switch is ON
|
B+
|
• Wiring harness (2F—ignition switch—battery)
• Fuse (IGNITION 20 A, P/ST IG 15 A)
|
|
Ignition switch is OFF
|
1 V or less
|
|||||
|
3A*1
|
Steering angle sensor ground
|
Steering angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3A—steering angle sensor D)
|
|
3A*2
|
—
|
—
|
—
|
—
|
—
|
—
|
|
3B
|
—
|
—
|
—
|
—
|
—
|
—
|
|
3B
|
Steering angle sensor
(signal 1)
|
Steering angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3B—steering angle sensor B)
|
|
3C
|
—
|
—
|
—
|
—
|
—
|
—
|
|
3D
|
Steering angle sensor
(signal 2)
|
Steering angle sensor
|
Continuity
|
Continuity
|
Continuity detected
|
• Wiring harness (3D—steering angle sensor C)
|
