DLC-2 CONSTRUCTION

id070200100400

Features

Outline

• A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

• Communication using the DLC-1 FEN terminal has been eliminated. Due to this, DTCs cannot be read out using a disc monitor or circuit tester.

DLC-2

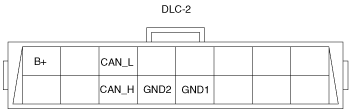

• Shape and terminal arrangement as stipulated by the ISO international standard has been adopted for this connector. The connector has a 16-pin construction that includes the CAN_H, CAN_L, GND1, GND2 and B+ terminals.

b3e0402t003

Terminal

Function

CAN_L

Serial communication terminal (LO)

CAN_H

Serial communication terminal (HI)

GND1

Body GND terminal

GND2

Serial communication GND terminal

B+

Battery power supply terminal

Terminal	Function
CAN_L	Serial communication terminal (LO)
CAN_H	Serial communication terminal (HI)
GND1	Body GND terminal
GND2	Serial communication GND terminal
B+	Battery power supply terminal
