DTC B1251, B1253, B1274, B1275, B1282, B1283 (MULTIPLE DTCS INDICATED)[MZ-CD 1.6 (Y6)]
id0702a1805200
|
DTC B1251, B1253, B1274, B1275, B1282, B1283 |
Climate control unit (+5 V power supply or sensor ground) system |
|---|---|
|
POSSIBLE CAUSE
|
• Open circuit in wiring harnesses between climate control unit and each temperature sensor, air mix actuator, or airflow mode actuator
|
Diagnostic Procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|

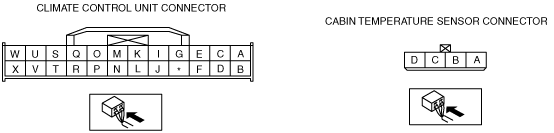

• Disconnect the climate control unit connector and the cabin temperature sensor connector.
• Is there an open circuit in the wiring harness between climate control unit terminal U and cabin temperature sensor terminal B?
|
Yes
|
Repair the wiring harness.
|
|
No
|
The system is normal at present. (Clear the past malfunction from the memory.)
|
||
 |
|||
