HVAC SYSTEM WIRING DIAGRAM

id070300800100

Full-auto Air Conditioner

ZJ, Z6, ZY, LF, L3, L3 Turbo

am3zzw00002690

MZ-CD 1.6 (Y6)

am3zzw00002691

Manual Air Conditioner

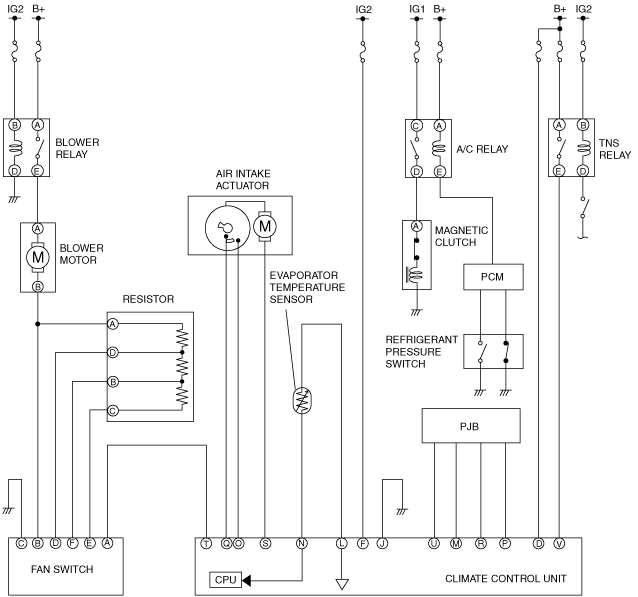

European (L.H.D. U.K.) specs. ZJ, Z6, ZY, LF, L3

am3zzw00000643

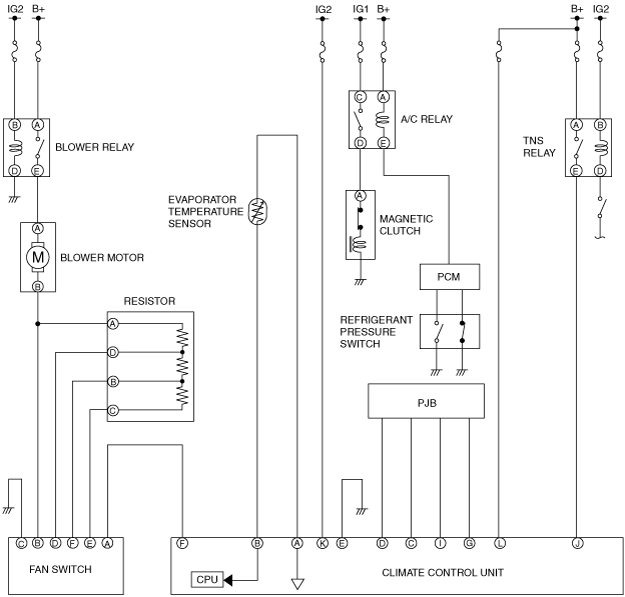

Australian, General (L.H.D. R.H.D.) specs. ZJ, Z6, ZY, LF, L3

am3zzw00003337

MZ-CD 1.6 (Y6)

am3zzw00000644
