A/C UNIT DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER]
id0711a1800300
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

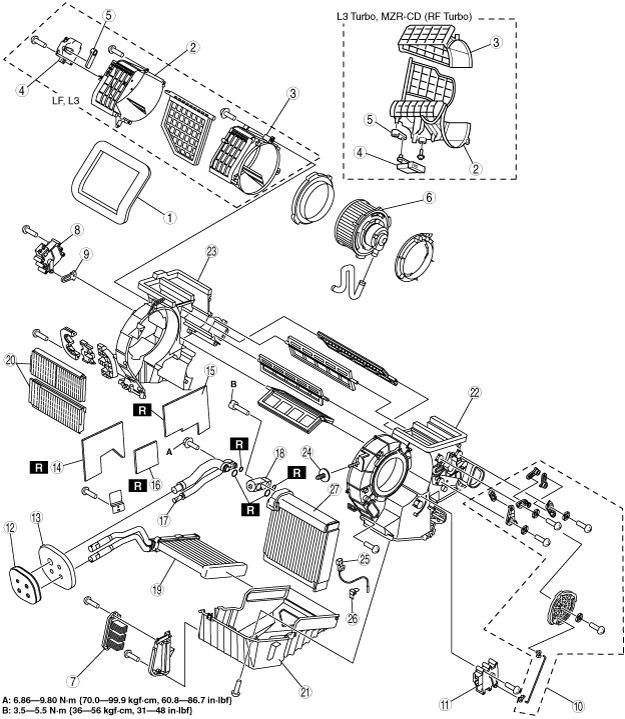

L.H.D.
am3zzw00003792
|

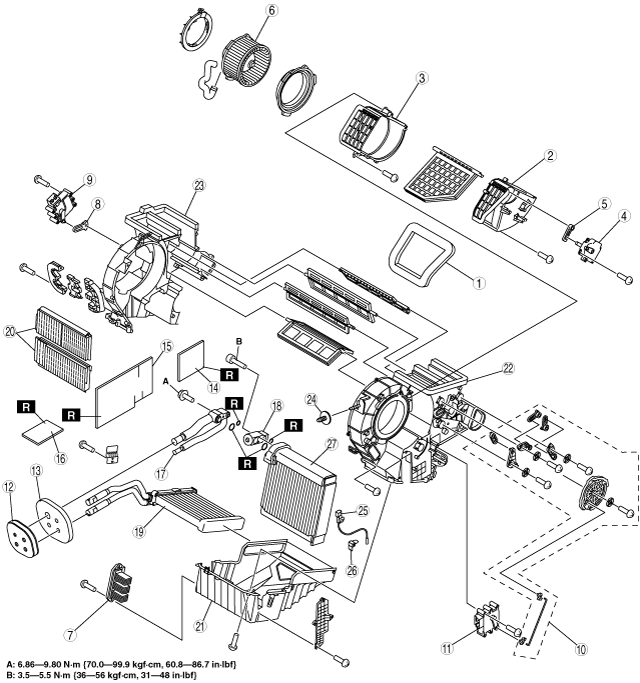

R.H.D.
am3zzw00000680
|
|
1
|
Adhesive polyurethane (1)
|
|
2
|
Blower case (1)
|
|
3
|
Blower case (2)
|
|
4
|
Air intake actuator
|
|
5
|
Air intake link set
|
|
6
|
Blower motor
|
|
7
|
Power MOS FET
|
|
8
|
Air mix link set
|
|
9
|
Air mix actuator
|
|
10
|
Airflow mode link set
|
|
11
|
Airflow mode actuator
|
|
12
|
Polyurethane foam (1)
|
|
13
|
Polyurethane foam (2)
|
|
14
|
Adhesive polyurethane (2)
|
|
15
|
Adhesive polyurethane (3)
|
|
16
|
Adhesive polyurethane (4)
|
|
17
|
Evaporator pipe
|
|
18
|
Expansion valve
|
|
19
|
Heater core
|
|
20
|
Air filter
|
|
21
|
A/C case (3)
|
|
22
|
A/C case (1)
|
|
23
|
A/C case (2)
|
|
24
|
Bolt
|
|
25
|
Evaporator temperature sensor
|
|
26
|
Sensor clamp
(See Sensor Clamp Assembly Note.)
|
|
27
|
Evaporator
|
Sensor Clamp Assembly Note
1. Attach the sensor clamp as shown in the figure.
am3zzw00000681
|
Evaporator Temperature Sensor Assembly Note
1. Assemble the evaporator temperature sensor as shown in the figure.
am3zzw00001432
|

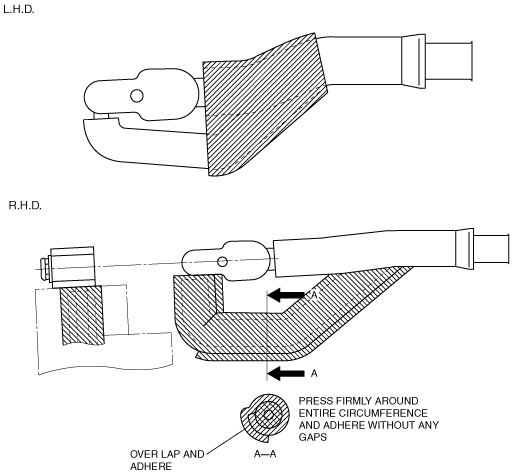

Adhesive Polyurethane (4) Assembly Note
1. Assemble the adhesive polyurethane (4) as shown in the figure.
am3zzw00004226
|

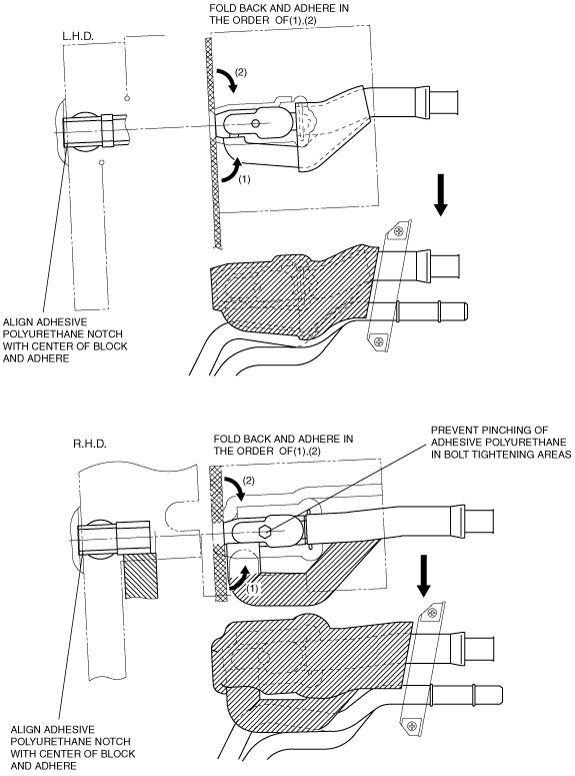

Adhesive Polyurethane (3) Assembly Note
1. Assemble the adhesive polyurethane (3) as shown in the figure.
am3zzw00004227
|
Adhesive Polyurethane (2) Assembly Note
1. Assemble the adhesive polyurethane (2) as shown in the figure.
am3zzw00004228
|
