BASIC SYSTEM STRUCTURAL VIEW[MZ-CD 1.6 (Y6)]

id0711b1100200

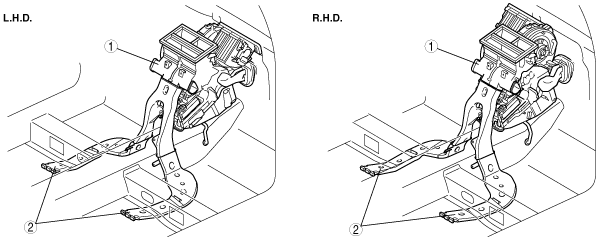

Ventilation System

am3zzn00000454

1	A/C unit
2	Rear heat duct

Refrigerant System

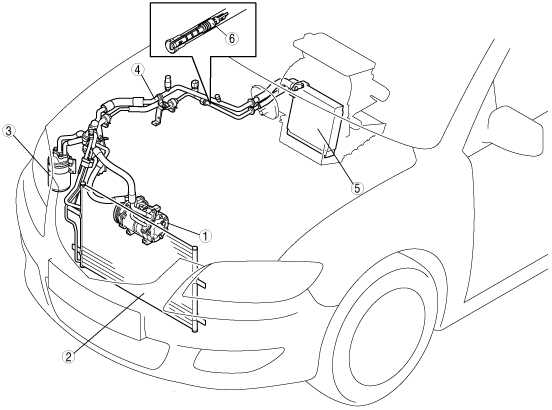

L.H.D.

am3zzn00000455

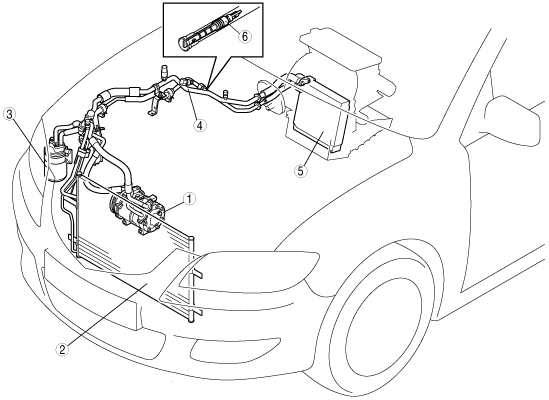

R.H.D.

am3zzn00000456

1	A/C compressor
2	Condenser
3	Accumulator
4	Refrigerant line
5	Evaporator
6	Orifice
