A/C UNIT DISASSEMBLY/ASSEMBLY[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))]
id0711b2800300
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
L.H.D.
am3zzw00000692
|

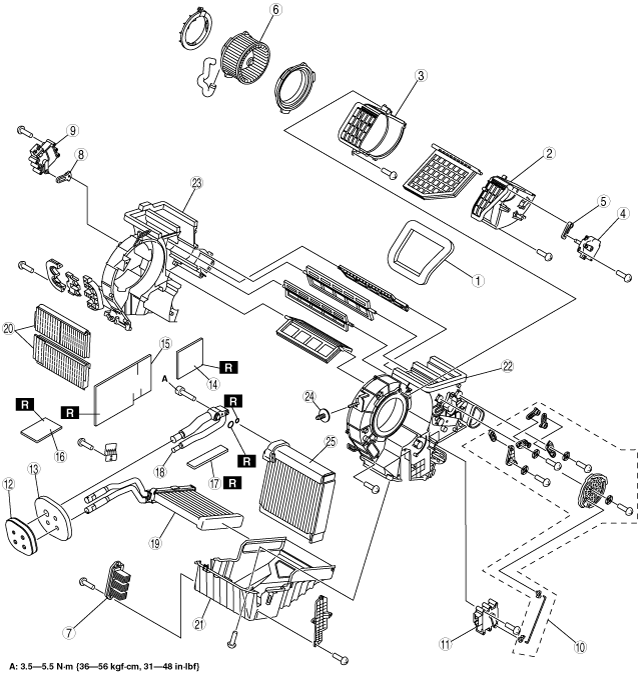

R.H.D.
am3zzw00000693
|
|
1
|
Adhesive polyurethane (1)
|
|
2
|
Blower case (1)
|
|
3
|
Blower case (2)
|
|
4
|
Air intake actuator
|
|
5
|
Air intake link set
|
|
6
|
Blower motor
|
|
7
|
Power MOS FET
|
|
8
|
Air mix link set
|
|
9
|
Air mix actuator
|
|
10
|
Airflow mode link set
|
|
11
|
Airflow mode actuator
|
|
12
|
Polyurethane foam (1)
|
|
13
|
Polyurethane foam (2)
|
|
14
|
Adhesive polyurethane (2)
|
|
15
|
Adhesive polyurethane (3)
|
|
16
|
Adhesive polyurethane (4) (R.H.D.)
|
|
17
|
Adhesive polyurethane (5) (R.H.D.)
|
|
18
|
Evaporator pipe
|
|
19
|
Heater core
|
|
20
|
Air filter
|
|
21
|
A/C case (3)
|
|
22
|
A/C case (1)
|
|
23
|
A/C case (2)
|
|
24
|
Bolt
|
|
25
|
Evaporator
|
Adhesive Polyurethane Assembly Note
1. Assemble the adhesive polyurethane as shown in the figure.
Adhesive polyurethane (5)
am3zzw00000694
|
Adhesive polyurethane (4)
am3zzw00000695
|
am3zzw00000696
|
am3zzw00000697
|

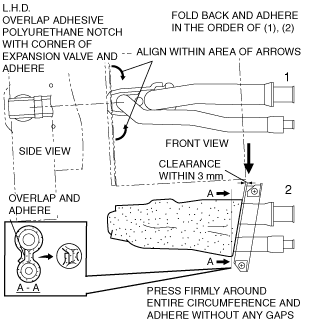

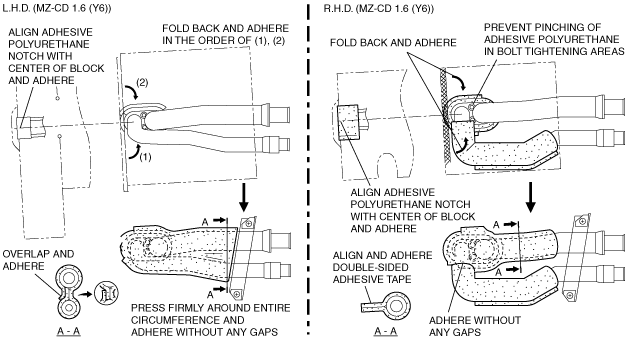

Adhesive polyurethane (3)
am3zzw00000698
|
am3zzw00000699
|
am3zzw00000700
|
Adhesive polyurethane (2)
am3zzw00000701
|
am3zzw00000702
|
