CLIMATE CONTROL UNIT CONSTRUCTION

id074000100900

•  A wire-type climate control unit is used with the manual air conditioner.
•  The airflow mode selector dial, temperature control dial, airflow volume control dial have been enlarged to improve ease of operation.

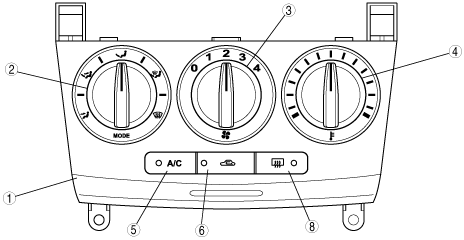

European (L.H.D. U.K.) specs.

am3zzn00001320

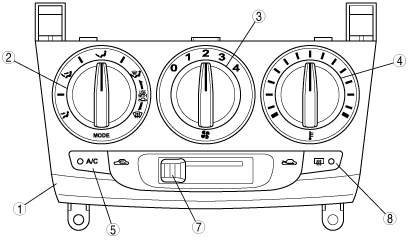

Australian, General (L.H.D. R.H.D.) specs.

am3zzn00001321

1
Climate control unit
2
Airflow mode selector dial
3
Airflow volume control dial
4
Temperature control dial
5
A/C switch
6
REC switch
7
REC/FRESH lever
8
Rear window defroster switch
