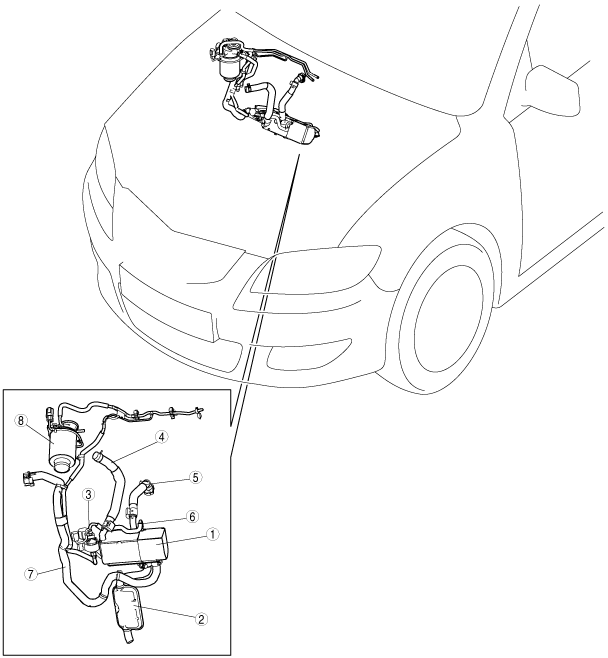

WATER HEATER SYSTEM STRUCTURAL VIEW [MZR-CD (RF Turbo)]

id074000117119

am3zzn00001703

1	Water heater unit
2	Heater silencer
3	Fuel pump (water heater system)
4	Heater hose No.1
5	Heater hose No.2
6	Fuel hose
7	Air intake hose
8	Fuel fillter
