WATER HEATER SYSTEM OPERATION [MZR-CD (RF Turbo)]
id074000117219
Starting Conditions
• The water heater system will start to operate when all of the following conditions are met:
-
― Ambient temperature less than 5 °C {41 °F}.
-
― Water temperature less than 70 °C {158 °F}.
Normal Operation
• The CPU in the water heater unit outputs a signal to blower fan and fuel pump, which then deliver air and fuel to the unit.
• Within the unit, fuel is vaporized and mixed with air, and then sent to the combustion chamber.
• The mixture is ignited, by a spark from the glow plug, in the combustion chamber.
• Engine coolant temperature is raised as it circulates along the outside of the combustion chamber.
|

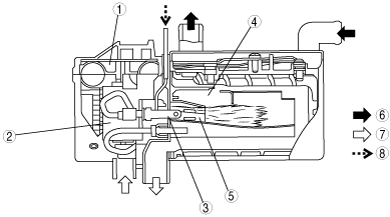

1
|
Blower fan
|
|
2
|
CPU
|
|
3
|
Glow plug
|
|
4
|
Combustion chamber
|
|
5
|
Burner
|
|
6
|
Water
|
|
7
|
Air
|
|
8
|
Fuel
|
Full/half Switching
• Depending on the engine coolant temperature, the CPU sets the flame to higher full or half strength settings.
|
1
|
Full mode
|
|
2
|
Half mode
|
|
3
|
Idle mode
|
