FAN SWITCH INSPECTION

id074000801300

1.  Remove the climate control unit.

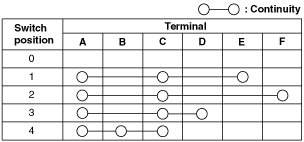

2.  Verify that the continuity between the fan switch terminals is as indicated in the table.

•  If there is any malfunction, replace the fan switch.

am3zzw00000830

am3zzw00000831
