CLIMATE CONTROL UNIT WIRE ADJUSTMENT

id074000802100

Air Intake Wire

1.  Set the REC/FRESH lever at recirculate position.

am3zzw00003269

2.  Connect the air intake wire to air intake link.

3.  Clamp the air intake wire to wire clamp.

4.  Remove the screwdriver and verify that the REC/FRESH lever can move its full stroke.

Air Mix Wire

1.  Set the temperature control dial at middle position (MAX HOT—MAX COLD).

am3zzw00000832

2.  Connect the air mix wire to air mix link.

3.  Clamp the air mix wire to wire clamp.

4.  Remove the screwdriver and verify that the temperature control dial can move its full stroke.

Airflow Mode Wire

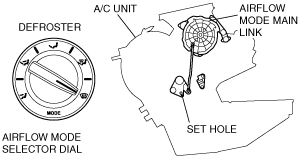

1.  Set the airflow mode selector dial at defroster.

am3zzw00000833

2.  Connect the airflow mode wire to airflow mode main link.

3.  Clamp the airflow mode wire to wire clamp.

4.  Remove the screwdriver and verify that the airflow mode selector dial can move its full stroke.
