SOLAR RADIATION SENSOR REMOVAL/INSTALLATION

id074000802800

1.  Disconnect the negative battery cable.

2.  Pry the solar radiation sensor from the dashboard using a flathead screwdriver wrapped with protective tape.

3.  Remove in the order indicated in the table.

Caution

•  After the solar radiation sensor removal, the sensor connector could fall in the dashboard making the installation difficult. Therefore, hold the rooted end of the sensor connector using a clip or similar tool to prevent it from falling.

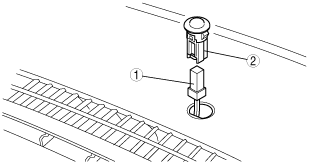

am3zzw00000766

1	Solar radiation sensor connector
2	Solar radiation sensor

4.  Install in the reverse order of removal.
