CONTROL SYSTEM STRUCTURAL VIEW [FULL-AUTO AIR CONDITIONER]
id0740a1100200

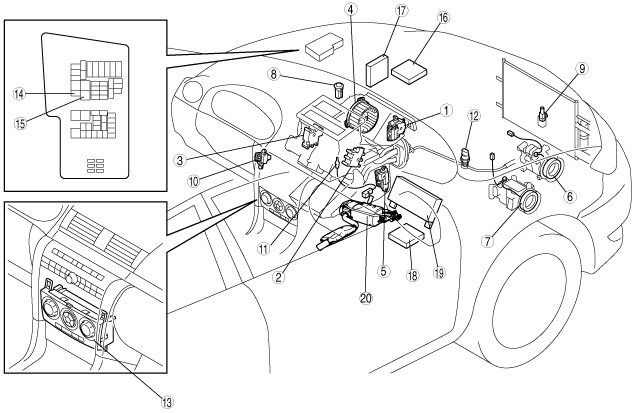

L.H.D.
am3zzn00001684
|

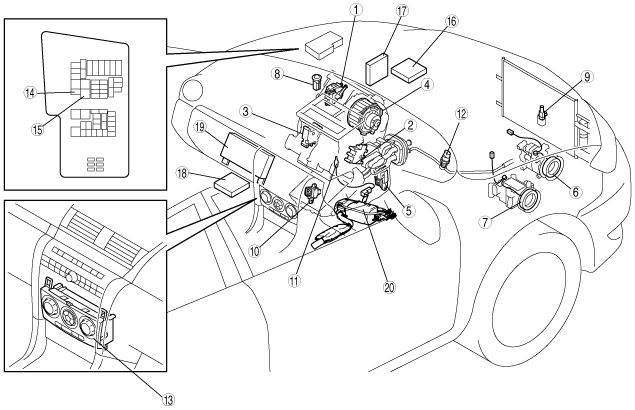

R.H.D.
am3zzn00001685
|
|
1
|
Air intake actuator
|
|
2
|
Air mix actuator
|
|
3
|
Airflow mode actuator
|
|
4
|
Blower motor
|
|
5
|
Power MOS FET
|
|
6
|
Magnetic clutch (Z6, ZJ, ZY, L3 Turbo, MZR-CD (RF Turbo))
|
|
7
|
Magnetic clutch (LF, L3)
|
|
8
|
Solar radiation sensor
|
|
9
|
Ambient temperature sensor
|
|
10
|
Cabin temperature sensor
|
|
11
|
Evaporator temperature sensor
|
|
12
|
Refrigerant pressure switch
|
|
13
|
Climate control unit
|
|
14
|
A/C relay
|
|
15
|
Blower relay
|
|
16
|
PCM (Z6, ZJ, ZY)
|
|
17
|
PCM (LF, L3, L3 Turbo)
|
|
18
|
PCM (MZR-CD (RF Turbo))
|
|
19
|
PJB
|
|
20
|
Water heater unit (MZR-CD (RF Turbo))
|
