CLIMATE CONTROL UNIT CONSTRUCTION[FULL-AUTO AIR CONDITIONER]

id0740a1100900

•  A logic-type climate control unit is used with the full-auto air conditioner.
•  Each switches and dials have been enlarged to improve ease of operation.
•  When the AMB temperature switch is pushed, the ambient temperature is displayed on the information display.

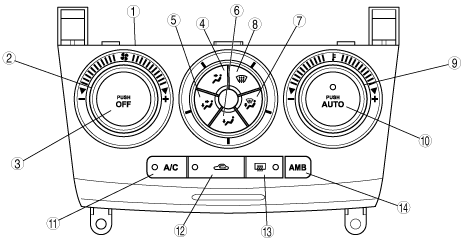

am3zzn00000497

1
Climate control unit
2
Airflow volume control dial
3
OFF switch
4
VENT switch
5
BI-LEVEL switch
6
HEAT switch
7
HEAT/DEF switch
8
DEFROSTER switch
9
Temperature setting dial
10
AUTO switch
11
A/C switch
12
REC switch
13
Rear window defroster switch
14
AMB temperature switch

•  Information about the operating condition of the system is displayed on the information display.

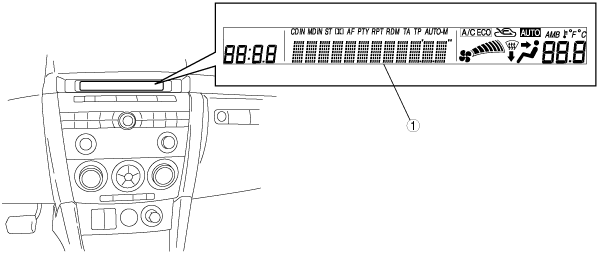

am3zzn00000498

1
Information display
