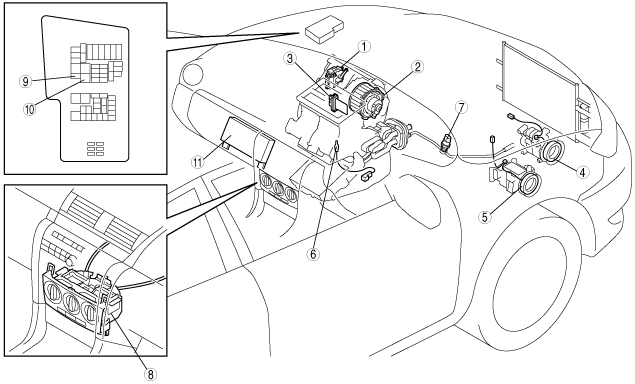

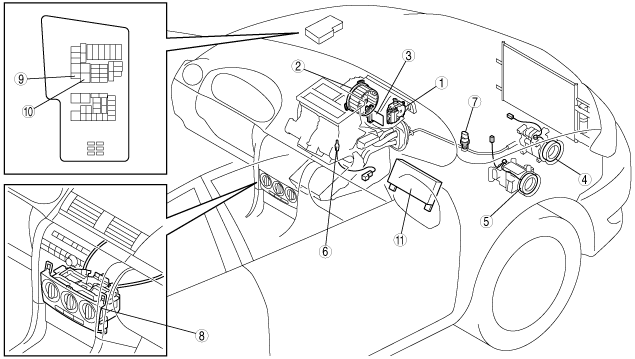

CONTROL SYSTEM STRUCTURAL VIEW [MANUAL AIR CONDITIONER]
id0740a2100200
L.H.D.
am3zzn00000499
|
R.H.D.
am3zzn00000500
|
|
1
|
Air intake actuator (European (L.H.D. U.K.) specs.)
|
|
2
|
Blower motor
|
|
3
|
Resistor
|
|
4
|
Magnetic clutch (Z6, ZJ, ZY, MZR-CD (RF Turbo))
|
|
5
|
Magnetic clutch (LF, L3)
|
|
6
|
Evaporator temperature sensor
|
|
7
|
Refrigerant pressure switch
|
|
8
|
Climate control unit
|
|
9
|
A/C relay
|
|
10
|
Blower relay
|
|
11
|
PJB
|
