CONTROL SYSTEM WIRING DIAGRAM[MANUAL AIR CONDITIONER]

id0740a2100400

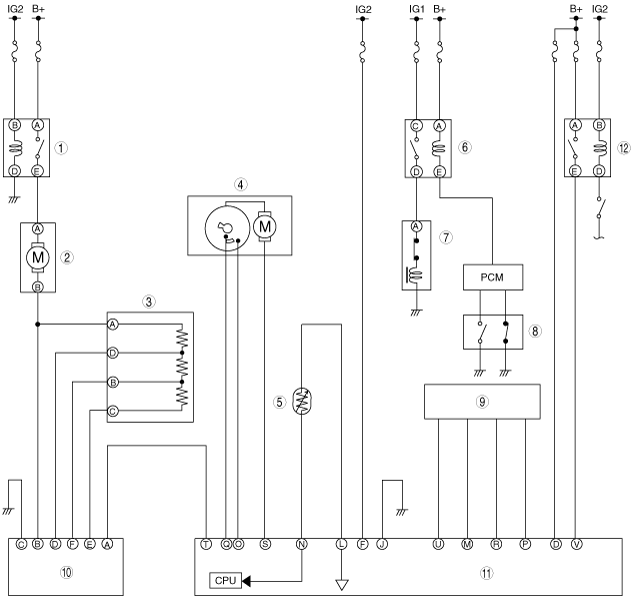

European (L.H.D. U.K.) specs.

am3zzn00000501

Australian, General (L.H.D. R.H.D.) specs.

am3zzn00001329

1	Blower relay
2	Blower motor
3	Resistor
4	Air intake actuator
5	Evaporator temperature sensor
6	A/C relay
7	Magnetic clutch
8	Refrigerant pressure switch
9	PJB
10	Fan switch
11	Climate control unit
12	TNS relay
