CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY[MANUAL AIR CONDITIONER]

id0740a2802000

1.  Disassemble in the order indicated in the table.

European (L.H.D. U.K.) specs.

am3zzw00003273

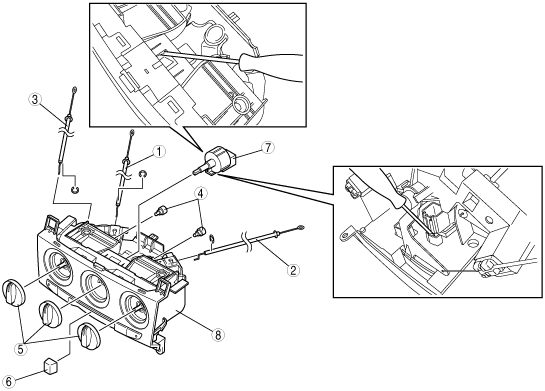

Australian, General (L.H.D. R.H.D.) specs.

am3zzw00003274

1	Airflow mode wire (See Wire Disassembly Note.) (See Wire Assembly Note.)
2	Air mix wire (See Wire Disassembly Note.) (See Wire Assembly Note.)
3	Air intake wire (See Wire Disassembly Note.) (See Wire Assembly Note.)
4	Illumination bulb
5	Dial
6	Knob
7	Fan switch
8	Body

2.  Assemble in the reverse order of disassembly.

Wire Disassembly Note

1.  Disassemble the wires as shown in the figure.

am3zzw00000797

Wire Assembly Note

1.  Assemble the wires at the positions shown in the figure.

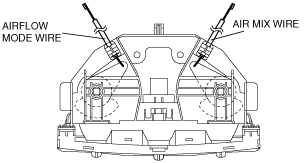

European (L.H.D. U.K.) specs.

am3zzw00000798

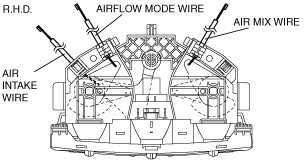

Australian, General (L.H.D. R.H.D.) specs.

am3zzw00003275

am3zzw00003342

2.  Assemble e-ring with the wire pressed against surface A.

•  If the e-ring has beer lost, the one at the wire end can be removed and reused.

am3zzw00000799
