REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION[MZ-CD 1.6 (Y6)]

id0740b3802600

1.  Disconnect the negative battery cable.

2.  Discharge the refrigerant from the system. (See REFRIGERANT CHARGING[MZ-CD 1.6 (Y6)].)

3.  Loosen the refrigerant pressure switch.

Caution

•  To prevent damage to the pipes, do not apply excessive force.

4.  Remove in the order indicated in the table.

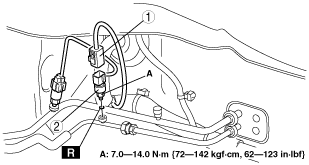

L.H.D.

am3zzw00001137

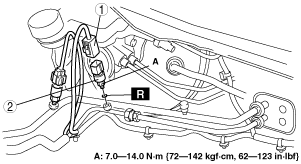

R.H.D.

am3zzw00001138

1	Refrigerant pressure switch connector
2	Refrigerant pressure switch (See Refrigerant Pressure Switch Installation Note.)

5.  Install in the reverse order of removal.

Refrigerant Pressure Switch Installation Note

1.  Apply compressor oil to O-ring and connect the joint.
