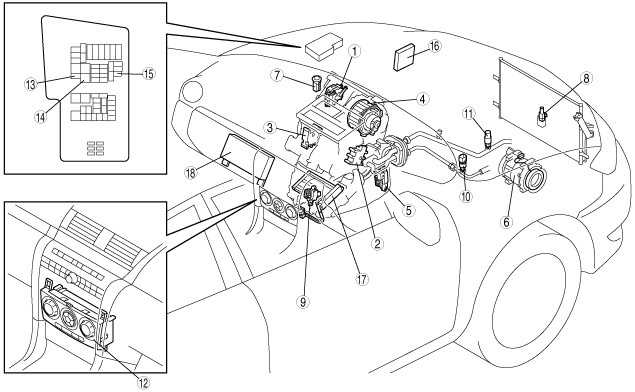

CONTROL SYSTEM STRUCTURAL VIEW[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))]
id0740b4100200
L.H.D.
b3e0740t601
|
R.H.D.
b3e0740t602
|
|
1
|
Air intake actuator
|
|
2
|
Air mix actuator
|
|
3
|
Airflow mode actuator
|
|
4
|
Blower motor
|
|
5
|
Power MOS FET
|
|
6
|
Magnetic clutch
|
|
7
|
Solar radiation sensor
|
|
8
|
Ambient temperature sensor
|
|
9
|
Cabin temperature sensor
|
|
10
|
Refrigerant pressure switch
|
|
11
|
A/C compressor cycling switch
|
|
12
|
Climate control unit
|
|
13
|
A/C relay
|
|
14
|
Blower relay
|
|
15
|
PTC heater relay
|
|
16
|
PCM
|
|
17
|
PTC heater
|
|
18
|
PJB
|
