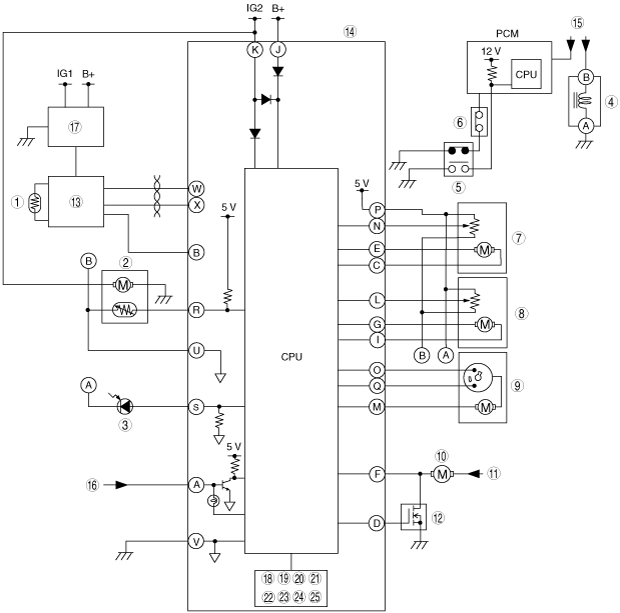

CONTROL SYSTEM WIRING DIAGRAM[FULL-AUTO AIR CONDITIONER (MZ-CD 1.6 (Y6))]
id0740b4100400
am3zzn00000513
|
|
1
|
Ambient temperature sensor
|
|
2
|
Cabin temperature sensor
|
|
3
|
Solar radiation sensor
|
|
4
|
Magnetic clutch
|
|
5
|
Refrigerant pressure switch
|
|
6
|
A/C compressor cycling switch
|
|
7
|
Air mix actuator
|
|
8
|
Airflow mode actuator
|
|
9
|
Air intake actuator
|
|
10
|
Blower motor
|
|
11
|
Blower relay
|
|
12
|
Power MOS FET
|
|
13
|
PJB
|
|
14
|
Climate control unit
|
|
15
|
A/C relay
|
|
16
|
TNS relay
|
|
17
|
PTC heater
|
|
18
|
Airflow volume control dial
|
|
19
|
OFF switch
|
|
20
|
Each mode switch
|
|
21
|
Temperature setting dial
|
|
22
|
AUTO switch
|
|
23
|
REC switch
|
|
24
|
Rear window defroster switch
|
|
25
|
AMB temperature switch
|
