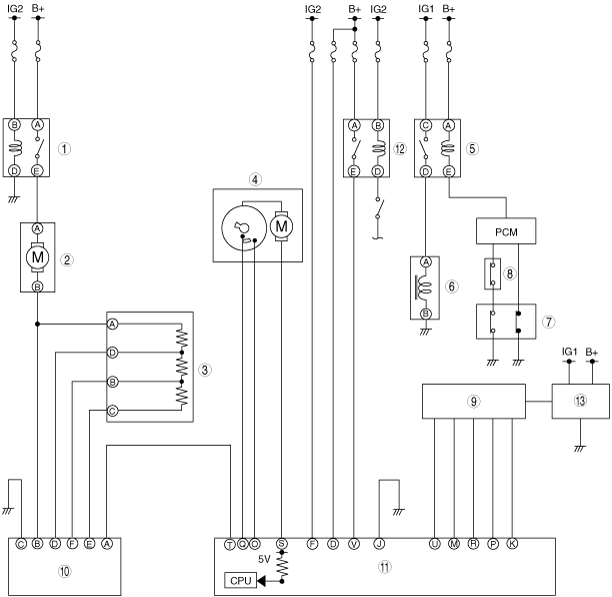

CONTROL SYSTEM WIRING DIAGRAM[MANUAL AIR CONDITIONER (MZ-CD 1.6 (Y6))]
id0740b5100400
am3zzn00000514
|
|
1
|
Blower relay
|
|
2
|
Blower motor
|
|
3
|
Resistor
|
|
4
|
Air intake actuator
|
|
5
|
A/C relay
|
|
6
|
Magnetic clutch
|
|
7
|
Refrigerant pressure switch
|
|
8
|
A/C compressor cycling switch
|
|
9
|
PJB
|
|
10
|
Fan switch
|
|
11
|
Climate control unit
|
|
12
|
TNS relay
|
|
13
|
PTC heater
|
