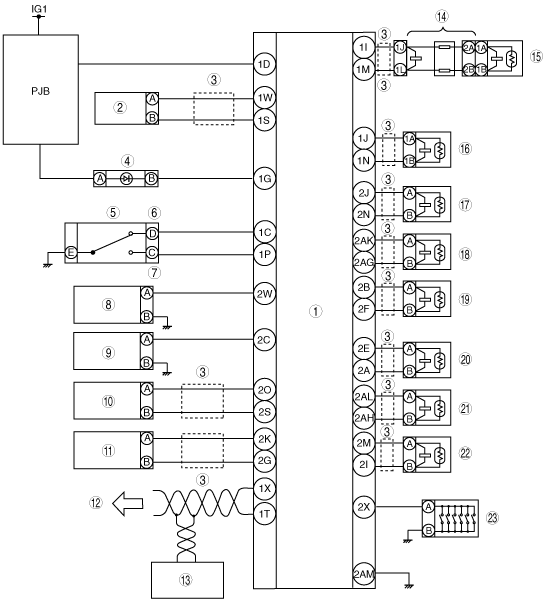

AIR BAG SYSTEM WIRING DIAGRAM
id081000100300
am3zzn00000714
|
|
1
|
SAS control module
|
|
2
|
Crash zone sensor
|
|
3
|
Twisted pair
|
|
4
|
PAD indicator
|
|
5
|
PAD switch
|
|
6
|
PASS AIRBAG ON
|
|
7
|
PASS AIRBAG OFF
|
|
8
|
Driver-side buckle switch
|
|
9
|
Passenger-side buckle switch
|
|
10
|
Driver-side side air bag sensor
|
|
11
|
Passenger-side side air bag sensor
|
|
12
|
Can system-related module
|
|
13
|
Instrument cluster
|
|
14
|
Clock spring
|
|
15
|
Driver-side air bag module
|
|
16
|
Passenger-side air bag module
|
|
17
|
Driver-side pre-tensioner seat belt
|
|
18
|
Driver-side curtain air bag module
|
|
19
|
Driver-side side air bag module
|
|
20
|
Passenger-side pre-tensioner seat belt
|
|
21
|
Passenger-side curtain air bag module
|
|
22
|
Passenger-side side air bag module
|
|
23
|
Occupancy sensor
|
