DTC B2479[PJB]
id090208833000
|
DTC B2479 |
Park brake switch circuit open |
|---|---|
|
DETECTION CONDITION
|
Open circuit in wiring harness between PJB and parking brake switch
|
|
POSSIBLE CAUSE
|

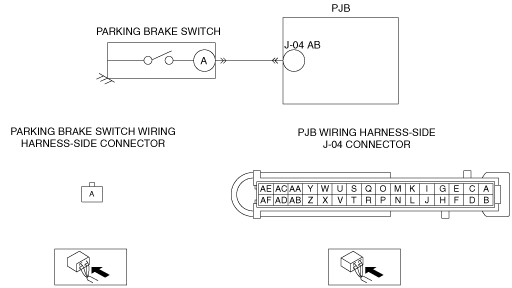

• Open circuit in wiring harness between PJB terminal J-04 AB and parking brake switch terminal A
• Parking brake switch malfunction
• PJB malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT PARKING BRAKE SWITCH CONNECTOR
• Turn the ignition switch off.
• Disconnect the parking brake switch connector.
• Inspect the parking brake switch connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT PARKING BRAKE SWITCH SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between PJB terminal J-04 AB (wiring harness-side) and parking brake switch terminal A (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 5.
|
||
|
4
|
INSPECT PARKING BRAKE SWITCH
• Inspect the parking brake switch.
• Is there any malfunction?
|
Yes
|
Replace the parking brake switch, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the M-MDS.
• Perform the self-test.
(See PJB SELF-TEST[PJB].)
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
|
No
|
DTC troubleshooting completed.
|
||
