DTC B1336[PJB]
id090208834000
|
DTC B1336 |
Door ajar RR circuit open |
|---|---|
|
DETECTION CONDITION
|
Open circuit in wiring harness between PJB and rear door latch switch (RH)
|
|
POSSIBLE CAUSE
|

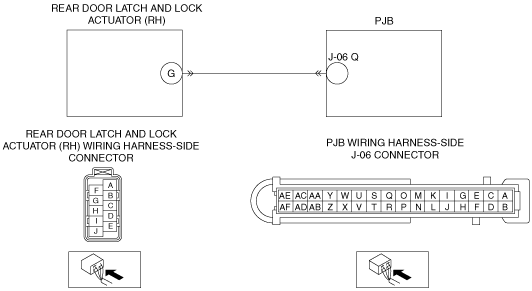

• Open circuit in wiring harness between PJB terminal J-06 Q and rear door latch and lock actuator (RH) terminal G
• Rear door latch and lock actuator malfunction
• PJB malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT REAR DOOR LATCH AND LOCK ACTUATOR (RH) CONNECTOR
• Turn the ignition switch off.
• Disconnect the rear door latch and lock actuator (RH) connector.
• Inspect the rear door latch and lock actuator (RH) connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT REAR DOOR LATCH AND LOCK ACTUATOR (RH) SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between PJB terminal J-06 Q (wiring harness-side) and rear door latch and lock actuator (RH) terminal G (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 5.
|
||
|
4
|
INSPECT REAR DOOR LATCH AND LOCK ACTUATOR (RIGHT REAR)
• Inspect the rear door latch and lock actuator (RH).
• Is there any malfunction?
|
Yes
|
Replace the rear door latch and lock actuator (RH), then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the M-MDS.
• Perform the self-test.
(See PJB SELF-TEST[PJB].)
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
|
No
|
DTC troubleshooting completed.
|
||
