DTC B1607[PJB]
id090208834600
|
DTC B1607 |
Key illumination circuit short to battery |
|---|---|
|
DETECTION CONDITION
|

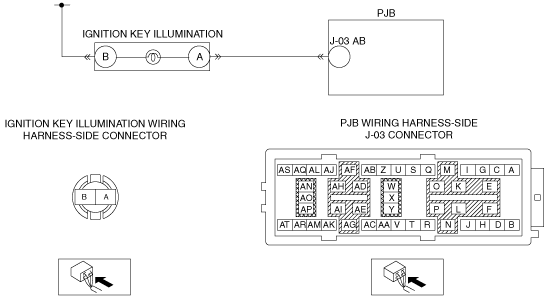

Short to power supply in wiring harness between PJB and key illumination
|
|
POSSIBLE CAUSE
|
• Short to power supply in wiring harness between PJB terminal J-03 AB and key illumination terminal A
• Ignition key illumination malfunction
• PJB malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT KEY ILLUMINATION CONNECTOR
• Turn the ignition switch off.
• Disconnect the key illumination connector.
• Inspect the key illumination connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT KEY ILLUMINATION SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between PJB terminal J-03 AB (wiring harness-side) and body GND.
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT KEY ILLUMINATION
• Inspect the key illumination.
• Is there any malfunction?
|
Yes
|
Replace the key illumination, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the M-MDS.
• Perform the self-test.
(See PJB SELF-TEST[PJB].)
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
|
No
|
DTC troubleshooting completed.
|
||
