TROUBLESHOOTING INDEX[CAR-NAVIGATION SYSTEM]

id0903e8800100


Troubleshooting Index

•  Use the chart below and verify the trouble in order to diagnose the appropriate area.

No.

Malfunction symptom
1
Display screen does not open even if the ignition switch is turned to the ACC position.
2
Display screen changes to black.
3
Display screen changes to white.
4
System does not load map disc.
5
Vehicle position deviates from the route map.
6
Car-navigation control switch is inoperative.
7
No voice navigation
8
Display screen does not change to the night mode.
(Front and rear combination lights operate normally.)

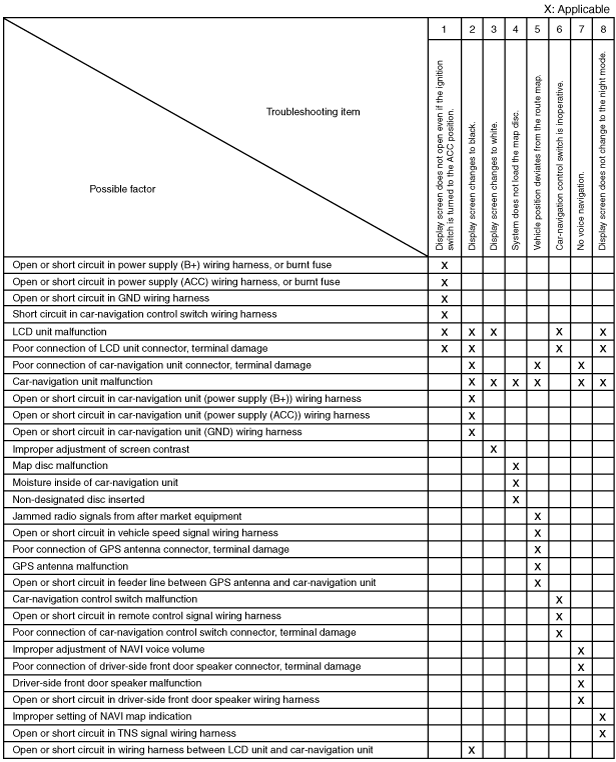

Quick Diagnostic Chart

am3zzw00001706
