FRONT BUMPER REMOVAL/INSTALLATION
id091000800300
4SD/Mazda3 MPS
1. Disconnect the negative battery cable.

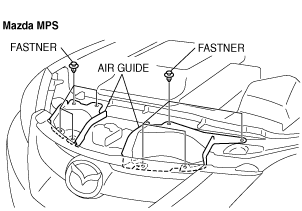

2. Remove the fastener, then remove the air guide. (Mazda3 MPS)
am3zzw00002992
|
3. Remove in the order indicated in the table.
am3zzw00002214
|
|
1
|
Fastener A
|
|
2
|
Screw A
|
|
3
|
Screw B
|
|
4
|
Screw C
|
|
5
|
Fastener B
|
|
6
|
Front bumper
|
4. Disconnect the ambient temperature sensor connector.
5. Disconnect the front fog light connectors for vehicles with the front fog lights.
6. Disconnect the headlight cleaner hose for vehicles with the headlight cleaner.
7. Install in the reverse order of removal.
8. Adjust the front fog light aiming for vehicles with the front fog lights. (See FRONT FOG LIGHT AIMING.)
5HB
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
am3zzw00002215
|
|
1
|
Fastener A
|
|
2
|
Screw A
|
|
3
|
Screw B
|
|
4
|
Screw C
|
|
5
|
Fastener B
|
|
6
|
Front bumper
|
3. Disconnect the front fog light connectors for vehicles with the front fog lights.
4. Disconnect the headlight cleaner hose for vehicles with the headlight cleaner.
5. Install in the reverse order of removal.
6. Adjust the front fog light aiming for vehicles with the front fog lights. (See FRONT FOG LIGHT AIMING.)
Fastener B Removal Note (5HB)
1. Remove fastener B by inserting a small flathead screwdriver into the service hole as shown in the figure.
am3zzw00002216
|
Front Bumper Removal Note

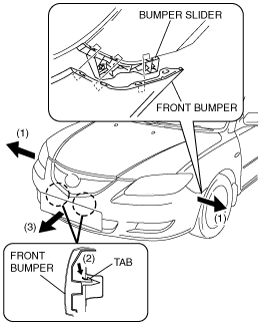

1. Pull the front bumper ends (wheel arch) outward to detach from the bumper slider.
am3zzw00002217
|
2. Push the tabs in the direction of the arrow.
3. Remove the front bumper from the body.
Front Bumper Installation Note
1. Spread the front bumper ends apart.
2. Attach the front bumper to the body.
3. Press the front bumper connecting area into the body to engage with the bumper slider.
