FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000800400
4SD (Standard Type)
1. Remove the following parts:
2. Disassemble in the order indicated in the table.
am3zzw00002285
|
|
1
|
Screw A
|
|
2
|
Set plate
|
|
3
|
Screw B
|
|
4
|
Front bumper mesh
|
|
5
|
Screw C
|
|
6
|
Front fog light hole cover A (vehicles without the front fog lights)
|
|
7
|
Front fog light hole cover B (vehicles without the front fog lights)
|
|
8
|
Screw D
|
|
9
|
License plate holder
|
|
10
|
Towing hook cover
|
|
11
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
4SD (Sports Type)
1. Remove the following parts:
2. Disassemble in the order indicated in the table.

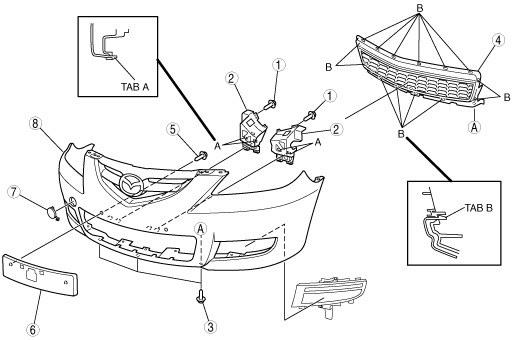

am3zzw00002286
|
|
1
|
Screw A
|
|
2
|
Set plate
|
|
3
|
Screw B
|
|
4
|
Front bumper mesh
|
|
5
|
Screw C
|
|
6
|
License plate holder
|
|
7
|
Towing hook cover
|
|
8
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
5HB (Standard Type)
1. Remove the following parts:
2. Disassemble in the order indicated in the table.
am3zzw00002287
|
|
1
|
Screw A
|
|
2
|
Set plate
|
|
3
|
Screw B
|
|
4
|
Front fog light cover (vehicles with the front fog lights)
|
|
5
|
Front fog light hole cover (vehicles without the front fog lights)
|
|
6
|
Screw C
|
|
7
|
Front bumper mesh
|
|
8
|
Screw D
|
|
9
|
License plate holder
|
|
10
|
Towing hook cover
|
|
11
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
5HB (Sports Type)
1. Remove the following parts:
2. Disassemble in the order indicated in the table.
am3zzw00002288
|
|
1
|
Fastener A
|
|
2
|
Screw A
|
|
3
|
Airdam skirt
|
|
4
|
Screw B
|
|
5
|
Set plate
|
|
6
|
Screw C
|
|
7
|
Fastener B
|
|
8
|
Front bumper mesh
|
|
9
|
Screw D
|
|
10
|
Front fog light cover
|
|
11
|
Screw E
|
|
12
|
License plate holder
|
|
13
|
Towing hook cover
|
|
14
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
5HB (Mazda3 MPS)
1. Remove the following parts:
2. Disassemble in the order indicated in the table.
am3zzw00002991
|
|
1
|
Screw A
|
|
2
|
Set plate
|
|
3
|
Rivet A
|
|
4
|
Front bumper deflector
|
|
5
|
Fastener
|
|
6
|
Rivet B
|
|
7
|
Airdam skirt
|
|
8
|
Screw B
|
|
9
|
Front bumper mesh
|
|
10
|
Screw C
|
|
11
|
Front bumper protector
|
|
12
|
Screw D
|
|
13
|
Front fog light hole cover A
|
|
14
|
Front fog light hole cover B
|
|
15
|
Screw E
|
|
16
|
License plate holder
|
|
17
|
Towing hook cover
|
|
18
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
