REAR BUMPER DISASSEMBLY/ASSEMBLY
id091000800800
4SD (Standard Type)
1. Remove the License plate lights. (SeeLICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
am3zzw00002279
|
|
1
|
Locator pin
|
|
2
|
Reflector
(SeeReflector Removal Note.)
|
|
3
|
Screw
|
|
4
|
Rear bumper fascia
|
3. Assemble in the reverse order of disassembly.
4SD (Sport Type)
1. Remove the License plate lights. (SeeLICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
am3zzw00002280
|
|
1
|
Fastener
|
|
2
|
Rivet
|
|
3
|
Splash shield
|
|
4
|
Locator pin
|
|
5
|
Screw A
|
|
6
|
Reflector A
(See5HB (Mazda3 MPS).)
|
|
7
|
Reflector B
(SeeReflector Removal Note.)
|
|
8
|
Screw B
|
|
9
|
Rear bumper fascia
|
3. Assemble in the reverse order of disassembly.
5HB (Standard Type)
1. Remove the License plate lights. (SeeLICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
am3zzw00002281
|
|
1
|
Fastener
|
|
2
|
Rivet
|
|
3
|
Splash shield
|
|
4
|
Locator pin
|
|
5
|
Reflector
(SeeReflector Removal Note.)
|
|
6
|
Rear bumper fascia
|
3. Assemble in the reverse order of disassembly.
5HB (Sport Type)
1. Remove the License plate lights. (SeeLICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.

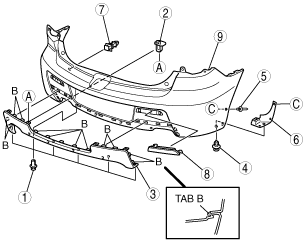

am3zzw00002282
|
|
1
|
Fastener A
|
|
2
|
Clip
|
|
3
|
Rear bumper fascia lower
|
|
4
|
Fastener B
|
|
5
|
Rivet
|
|
6
|
Splash shield
|
|
7
|
Locator pin
|
|
8
|
Reflector
(SeeReflector Removal Note.)
|
|
9
|
Rear bumper fascia
|
3. Assemble in the reverse order of disassembly.
5HB (Mazda3 MPS)
1. Remove the License plate lights. (SeeLICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.

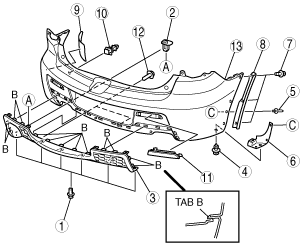

am3zzw00002993
|
|
1
|
Fastener A
|
|
2
|
Clip
|
|
3
|
Rear bumper fascia lower
|
|
4
|
Fastener B
|
|
5
|
Rivet
|
|
6
|
Splash shield
|
|
7
|
Fastener C
|
|
8
|
Rear bumper molding
|
|
9
|
Insulator
|
|
10
|
Locator pin
|
|
11
|
Reflector
(SeeReflector Removal Note.)
|
|
12
|
Screw
|
|
13
|
Rear bumper fascia
|
3. Assemble in the reverse order of disassembly.

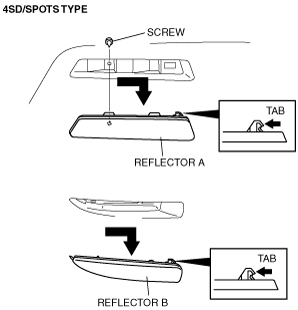

Reflector Removal Note
1. Remove the screws. (4SD (sports type))
2. Lift the reflector up in the direction of the arrow, then unhook it from the rear bumper.
am3zzw00002283
|
am3zzw00002284
|
