COWL PANEL REMOVAL/INSTALLATION

id091000802000

1.  Remove the windshield wiper arm and blade. (SeeWINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Remove the cowl grille. (SeeCOWL GRILLE REMOVAL/INSTALLATION.)

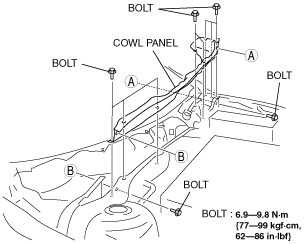

3.  Remove the bolts, then remove the cowl panel.

am3zzw00002239

4.  Install in the reverse order of removal.
