POWER WINDOW SYSTEM WIRING DIAGRAM
id091200100300

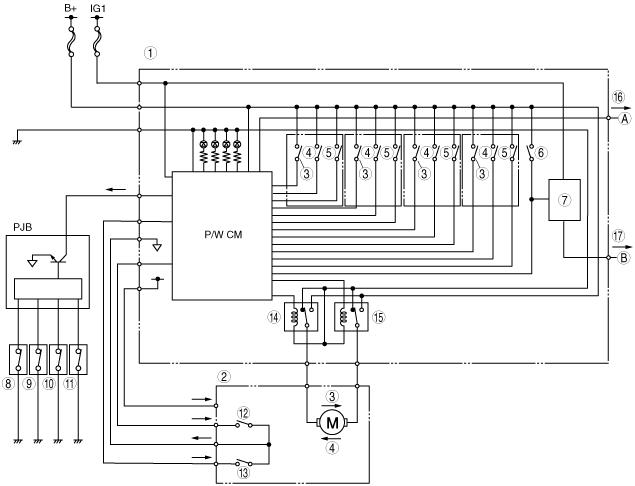

Power Window Main Switch
am3zzn00000909
|
|
1
|
Power window main switch
|
|
2
|
Power window motor (driver’s side)
|
|
3
|
Close
|
|
4
|
Open
|
|
5
|
Auto
|
|
6
|
power-cut switch
|
|
7
|
Conjunction circuit
|
|
8
|
Door latch switch (driver’s side)
|
|
9
|
Door latch switch (passenger’s side)
|
|
10
|
Door latch switch (rear left)
|
|
11
|
Door latch switch (rear right)
|
|
12
|
Hall effect switch 1
|
|
13
|
Hall effect switch 2
|
|
14
|
Close relay
|
|
15
|
Open relay
|
|
16
|
To power window subswitch A
|
|
17
|
To power window subswitch B
|

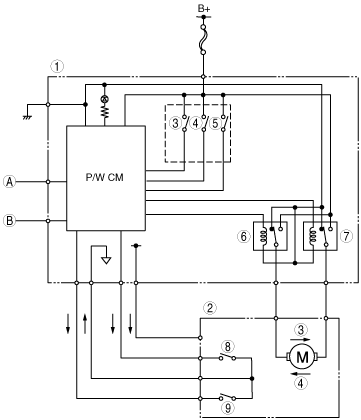

Power Window Subswitch
am3zzn00000910
|
|
1
|
Power window subswitch
|
|
2
|
Power window motor
|
|
3
|
Close
|
|
4
|
Open
|
|
5
|
Auto
|
|
6
|
Close relay
|
|
7
|
Open relay
|
|
8
|
Hall effect switch 1
|
|
9
|
Hall effect switch 2
|
