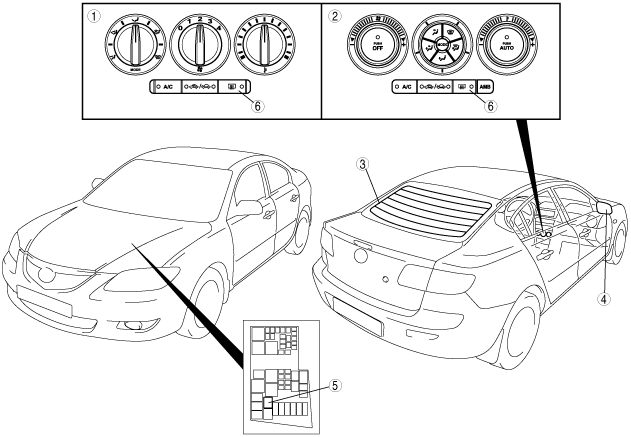

REAR WINDOW DEFROSTER SYSTEM STRUCTURAL VIEW
id091200100500
b3e0912t001
|
|
1
|
Climate control unit (Manual air conditioner)
|
|
2
|
Climate control unit (Full-auto air conditioner)
|
|
3
|
Rear window defroster filament
|
|
4
|
Heated outer mirror
|
|
5
|
Rear window defroster relay
|
|
6
|
Rear window defroster switch
|
