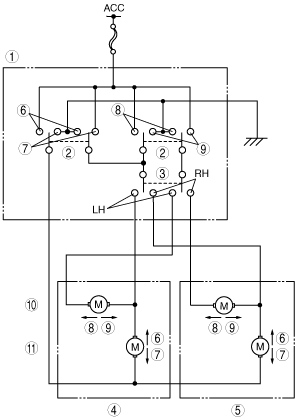

POWER OUTER MIRROR SYSTEM WIRING DIAGRAM
id091200100900
b3e0912t009
|
|
1
|
Power outer mirror switch
|
|
2
|
Mirror glass adjustment switch
|
|
3
|
Left/right selection switch
|
|
4
|
Power outer mirror (LH)
|
|
5
|
Power outer mirror (RH)
|
|
6
|
Up
|
|
7
|
Down
|
|
8
|
Right
|
|
9
|
Left
|
|
10
|
Left/right adjustment motor
|
|
11
|
Up/down adjustment motor
|
