•  The left/right selection switch establishes left or right side outer mirror circuit and current is supplied in either one of the four directions according to the position of the mirror glass adjustment switch. Due to this, the motor rotates either up or down, left or right.

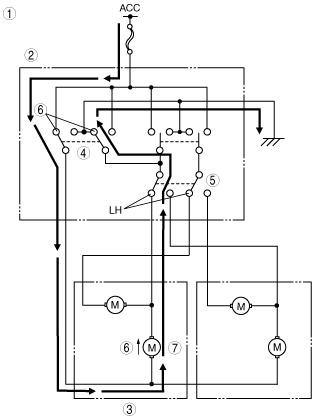

b3e0912t010

1	Left side outer mirror is moved upward
2	Power outer mirror switch
3	Power outer mirror (LH)
4	Mirror glass adjustment switch
5	Left/right selection switch
6	Up
7	Up/down adjustment motor
