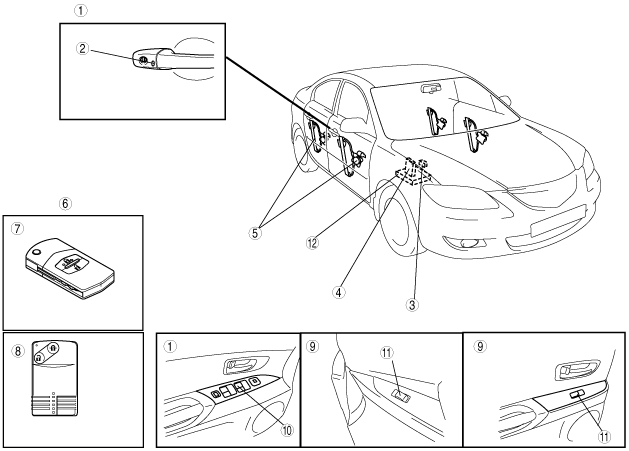

EXTERIOR OPEN/CLOSE FUNCTION STRUCTURAL VIEW
id091200102100
am3zzn00000727
|
|
1
|
Driver’s side
|
|
2
|
Request switchi (*1)
|
|
3
|
Keyless receiver
|
|
4
|
Keyless control module (*1)
|
|
5
|
Power window regulator/motor
|
|
6
|
Transmitter
|
|
7
|
With Keyless entry system
|
|
8
|
With advanced keyless system
|
|
9
|
Except driver’s side
|
|
10
|
Power window main switch
|
|
11
|
Power window subswitch
|
|
12
|
PJB
|
