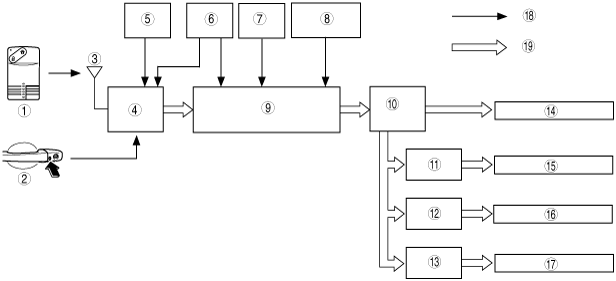

EXTERIOR OPEN/CLOSE FUNCTION BLOCK DIAGRAM
id091200102200
With Advanced Keyless System
am3zzn00000719
|
|
1
|
Transmitter
|
|
2
|
Request switchi (driver’s side)
|
|
3
|
Keyless receiver
|
|
4
|
Keyless control module
|
|
5
|
Push switch
|
|
6
|
Lock link switch
|
|
7
|
Door switch
|
|
8
|
Cargo compartment Light switch
|
|
9
|
PJB
|
|
10
|
Power window main switch
|
|
11
|
Power window subswitch (RF)
|
|
12
|
Power window subswitch (LR)
|
|
13
|
Power window subswitch (RR)
|
|
14
|
Power window motor (LF)
|
|
15
|
Power window motor (RF)
|
|
16
|
Power window motor (LR)
|
|
17
|
Power window motor (RR)
|
|
18
|
Input signal
|
|
19
|
control signal
|
With Keyless Entry System
am3zzn00000720
|
|
1
|
Transmitter
|
|
2
|
Keyless control module
|
|
3
|
Door switch
|
|
4
|
Key reminder switch
|
|
5
|
Cargo compartment Light switch
|
|
6
|
PJB
|
|
7
|
Power window main switch
|
|
8
|
Power window subswitch (RF)
|
|
9
|
Power window subswitch (LR)
|
|
10
|
Power window subswitch (RR)
|
|
11
|
Power window motor (LF)
|
|
12
|
Power window motor (RF)
|
|
13
|
Power window motor (LR)
|
|
14
|
Power window motor (RR)
|
|
15
|
Input signal
|
|
16
|
control signal
|
