FRONT SEAT DISASSEMBLY/ASSEMBLY

id091300800300

Warning

•  Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings and cautions before handling the front seat (with a side air bag). (See SERVICE WARNINGS.)(See SERVICE CAUTIONS.)

1.  Disconnect the negative battery cable and wait for more than 1 minute.

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of disassembly.

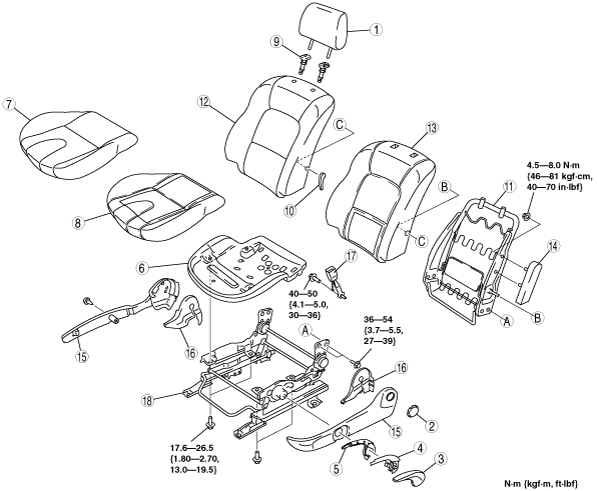

Driver’s Seat

am3zzw00001922

1	Headrest
2	Recliner dial
3	Outer lift lever cover
4	Lift lever
5	Inner lift lever cover
6	Seat cushion frame
7	Seat cushion trim
8	Seat cushion pad
9	Pole guide
10	Lumbar support lever
11	Seat back frame
12	Seat back trim
13	Seat back pad
14	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
15	Side cover
16	Reverse cover
17	Front buckle
18	Slide adjuster

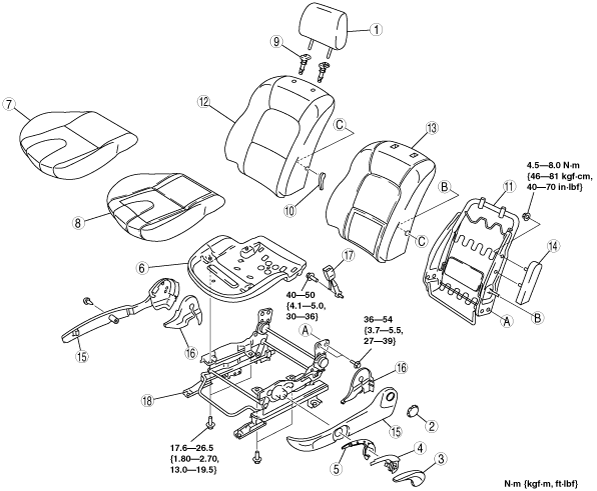

Passenger’s Seat

am3zzw00001923

1	Headrest
2	Recliner lever
3	Seat cushion frame
4	Seat cushion trim
5	Seat cushion pad
6	Pole guide
7	Seat back frame
8	Seat back trim
9	Seat back pad
10	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
11	Side cover
12	Reverse cover
13	Front buckle
14	Slide adjuster
