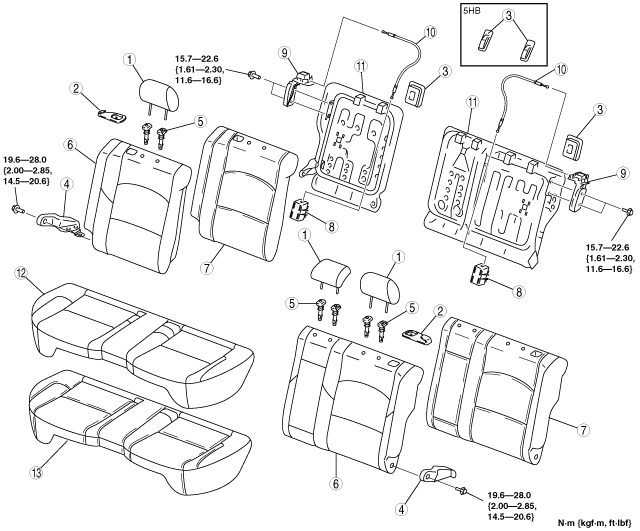

REAR SEAT DISASSEMBLY/ASSEMBLY
id091300800500
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
am3zzw00000564
|
|
1
|
Headrest
|
|
2
|
Fold-down switch cover
|
|
3
|
Rear seat back lock cover (4SD)
|
|
Child seat anchor cover (5HB)
|
|
|
4
|
Rear seat back side hinge
|
|
5
|
Pole guide
|
|
6
|
Rear seat back trim
|
|
7
|
Rear seat back pad
|
|
8
|
Rear seat back lock (4SD)
|
|
9
|
Fold-down switch
|
|
10
|
Remote wire
|
|
11
|
Rear seat back frame
|
|
12
|
Rear seat cushion trim
|
|
13
|
Rear seat cushion pad
|
