FRONT DOOR LOCK ACTUATOR INSPECTION

id091400800800

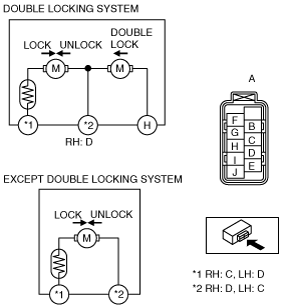

1.  Apply battery positive voltage and connect ground to the corresponding front door lock actuator terminals, and inspect the front door lock actuator operation.

am3zzw00002670

•  If not as specified, replace the front door latch and lock actuator.

Lock actuator operation	Connection
	B+	GND
Double lock	H	LH: C RH: D
Lock	LH: D RH: C	LH: C RH: D
Unlock	LH: C RH: D	LH: D RH: C
