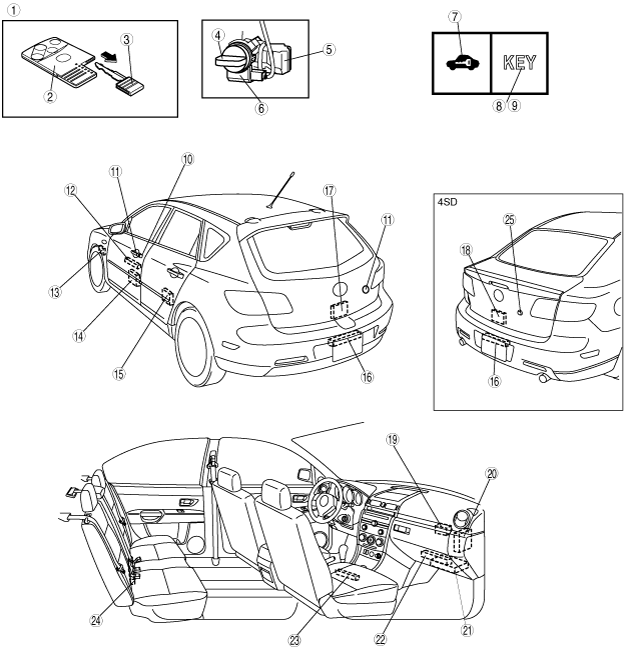

SECURITY AND LOCKS STRUCTURAL VIEW[ADVANCED KEYLESS SYSTEM]
id0914b1100200
am3zzn00000695
|
|
1
|
Card key
|
|
2
|
Transmitter
|
|
3
|
Auxiliary key
|
|
4
|
Start knob (ignition switch)
|
|
5
|
Steering lock unit
|
|
6
|
Coil antenna
|
|
7
|
Security light
|
|
8
|
Keyless warning light (red)
|
|
9
|
Keyless indicator light (green)
|
|
10
|
Door key cylinder switch
|
|
11
|
Request switch
|
|
12
|
Keyless antenna (exterior, LF)
|
|
13
|
Keyless beeper
|
|
14
|
Front door lock actuator
|
|
15
|
Rear door lock actuator
|
|
16
|
Keyless antenna (exterior, rear)
|
|
17
|
Liftgate latch and lock actuator
|
|
18
|
Trunk lid opener
|
|
19
|
Keyless receiver
|
|
20
|
Keyless control module
|
|
21
|
PJB
|
|
22
|
Keyless antenna (interior, front)
|
|
23
|
Keyless antenna (interior, middle)
|
|
24
|
Keyless antenna (interior, rear)
|
|
25
|
Request switch (key cylinder push switch)
|
