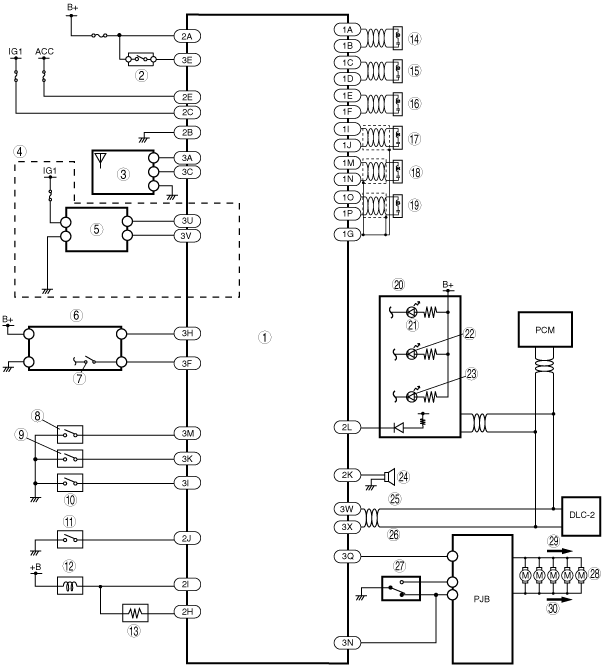

SECURITY AND LOCKS SYSTEM WIRING DIAGRAM [ADVANCED KEYLESS SYSTEM]
id0914b1100300
am3zzn00003476
|
|
1
|
Keyless control module
|
|
2
|
Push switch
|
|
3
|
Keyless receiver
|
|
4
|
With immobilizer system
|
|
5
|
Coil antenna
|
|
6
|
Steering lock unit
|
|
7
|
Key reminder switch
|
|
8
|
4SD
• Request switch (key cylinder push switch)
5HB
• Request switch
|
|
9
|
Request switch (LF)
|
|
10
|
Request switch (RF)
|
|
11
|
Not P range switch
|
|
12
|
AT inter-lock solenoid
|
|
13
|
AT inter-lock register
|
|
14
|
Keyless antenna (exterior, RF)
|
|
15
|
Keyless antenna (exterior, LF)
|
|
16
|
Keyless antenna (exterior, rear)
|
|
17
|
Keyless antenna (interior, rear)
|
|
18
|
Keyless antenna (interior, middle)
|
|
19
|
Keyless antenna (interior, front)
|
|
20
|
Instrument cluster
|
|
21
|
Security light
|
|
22
|
Keyless warning light (red)
|
|
23
|
Keyless indicator light (green)
|
|
24
|
Keyless beeper
|
|
25
|
CAN HI
|
|
26
|
CAN LO
|
|
27
|
Door lock-link switch
|
|
28
|
Door lock actuator
|
|
29
|
Lock
|
|
30
|
Unlock
|
