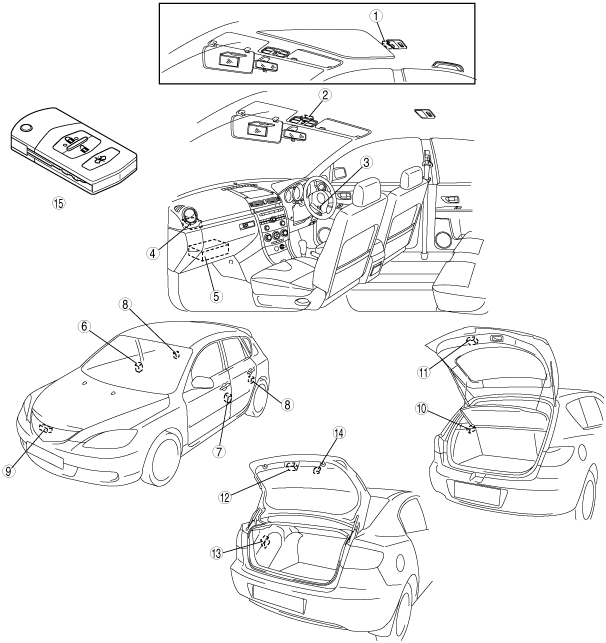

THEFT-DETERRENT SYSTEM STRUCTURAL VIEW[KEYLESS ENTRY SYSTEM]

id0914b3100600

am3zzn00000859

1

Intruder sensor (Vehicles with sunroof)

2

Intruder sensor (Vehicles without sunroof)

3

Key reminder switch

4

Keyless control module

5

PJB

6

Front door latch and lock actuator (Driver"s side)

•  Front door latch switch

•  Door lock-link siwtch

•  Door key cylinder switch

7

Front door latch and lock actuator (Passenger’s side)

•  Front door latch switch

8

Rear door latch and lock actuator

•  Rear door latch switch

9

Bonnet latch switch

10

Theft-deterrent siren (5HB)

11

Liftgate latch and lock actuator

•  Liftgate latch switch

12

Trunk lid latch and opener

•  Trunk lid latch switch

13

Theft-deterrent siren (4SD)

14

Trunk lid key cylinder

•  Trunk lid key cylinder switch

•  Trunk lid key cylinder puch switch

15

Transmitter

1	Intruder sensor (Vehicles with sunroof)
2	Intruder sensor (Vehicles without sunroof)
3	Key reminder switch
4	Keyless control module
5	PJB
6	Front door latch and lock actuator (Driver"s side) • Front door latch switch • Door lock-link siwtch • Door key cylinder switch
7	Front door latch and lock actuator (Passenger’s side) • Front door latch switch
8	Rear door latch and lock actuator • Rear door latch switch
9	Bonnet latch switch
10	Theft-deterrent siren (5HB)
11	Liftgate latch and lock actuator • Liftgate latch switch
12	Trunk lid latch and opener • Trunk lid latch switch
13	Theft-deterrent siren (4SD)
14	Trunk lid key cylinder • Trunk lid key cylinder switch • Trunk lid key cylinder puch switch
15	Transmitter
